Product status: conventional product
Place of Origin: China (Guangzhou)

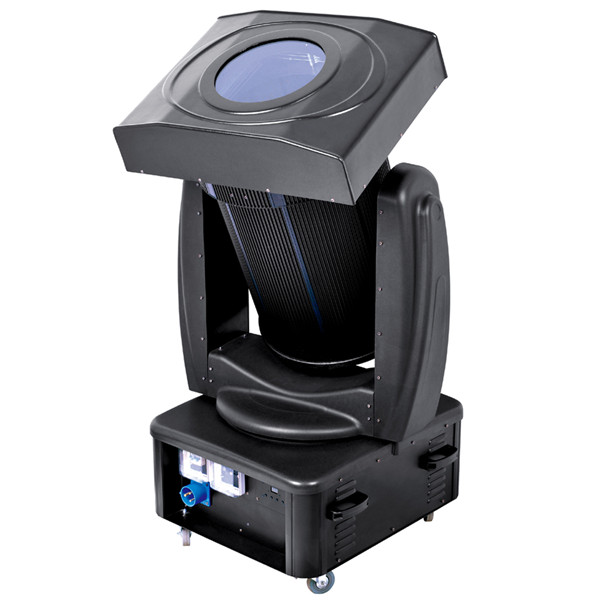

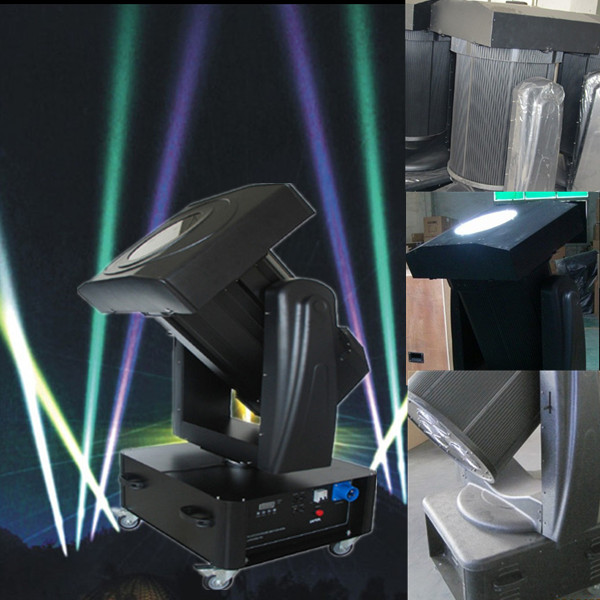

Product model: LY-3001W 4KW moving head color-changing searchlight
Product power: AC24v/110-240v 50-60Hz
Obtained certification: CE, ROSH, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Product model: LY-3001W
Product Name: 4KW Moving Head Sky Search
Product parameters:
Voltage: AC110V/220V/380 50/60Hz
Power: LY056A/4000W, LY056B/5000W
Bulb: XHM4000/XHM5000
Total length of bulb: 410mm/420mm
Fixing position length of bulb: 380 mm/390mm
Control signal: DMX-512 internal program has a single self-propelled function, and multiple internal programs have master-slave synchronization control signal reset function. X-axis and Y-axis forward and reverse The moving head color-changing searchlight that integrates dyeing and remote projection is a new generation of outdoor lighting. The appearance adopts aluminum alloy anti-oxidation design, which is better than traditional searchlights with a higher waterproof level. The newly successfully researched dust-proof filter system can provide long-term work in the harsh outdoor environment. With the advanced three-primary color (CMY) color change system, the product color change effect is unique. The unique liquid crystal display, strobe, electronic asymptotic linear dimming and focal length adjustment functions highlight the extraordinary taste of the product.
Protection level: IP55
Specially designed reflective bowl to produce the highest brightness output
X axis: 360°, with photosensitive error correction function, can automatically correct the lamp homing
X-axis fine-tuning: 5.4° fine-tuning, more accurate positioning
Y axis: 270°, with photosensitive correction function, can automatically correct the lamp homing
Y-axis fine-tuning: 5.4° fine-tuning, more accurate positioning
White light + CMY color changing system can combine a variety of colors.
Parallel light output, projection distance up to 4KM, beam diameter 280 mm
Function: The body has overheating, overload, short circuit, loss of voltage protection, shockproof,
Waterproof (LED) electronic setting display.
Widely used in high-rise buildings, gymnasiums, hotels, theme parks, amusement parks and large outdoor performances
Product size: 100x75x148cm
Packing size: 110x85x158cm
Product weight: 122Kg
Package weight: 132Kg
