Product status: conventional product
Place of Origin: China (Guangzhou)
Product model: LY-8036C 12-way 4KW through box
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROSH, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Product model: LY-8036C

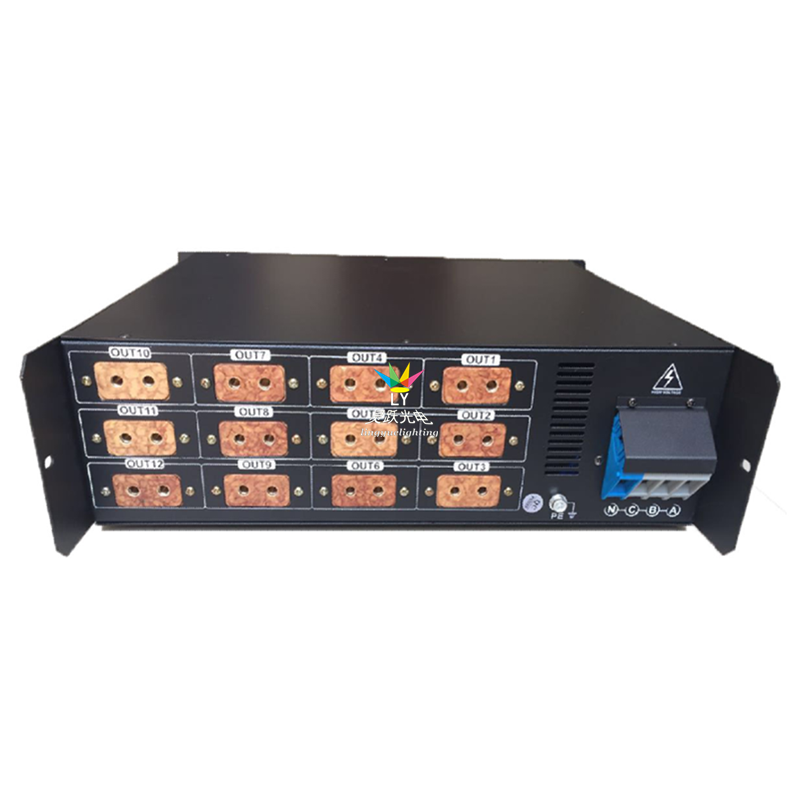

Product name: 12x4KW Power box
Product parameters:
(1) Power supply: three-phase five-wire system AC380V±10%, frequency 50Hz±5%.
(2) Rated power: 12 circuits 4KW; applicable to any load.
(3) High breaking air switch with double protection of overload and short circuit.
(4) A.B.C three-phase working indicator light. Two-pin and three-pin universal spare sockets are provided for easy use
Instructions:
1. Please connect the required power supply equipment before use. This product can be directly connected to 12 4KW conventional stage lights or 12 4KW computer special effect lights, and 12 channels are individually controlled;
2. Connect AC380V three-phase power again, pay attention to the live wire (ABC) and the neutral wire (N) not to be reversed, and the ground wire (PE) should be well grounded. At this time, the panel indicator lights up and the air switch is turned on. The connected light fixture should light up.
Product size: 51.5x48.5x13.3cm
Packing size: 53x49x15.5cm
Product weight: 11.9kgs
Package weight: 12.3kgs
